Explain: This series collects all kinds of connection forms and structural couplings, nipples, nozzles, rotary couplings, thermowells and other products in the automatic control instrument pipeline system. It is an essential connecting piece in the pipeline with a wide range of varieties, specifications and applications. The YZG8 series of metal hose connectors are combined with various metal hoses and metal flexible pipes to protect cables from mechanical damage and flameproof. This series of connectors are matched with the cable hole threads left by the instrument, so there are two categories of internal and external threads. The connector at this end of the metal hose that matches the equipment and the protection pipe can be replaced. If there is no suitable specification, a customized joint can be proposed to meet the appropriate thread requirements.

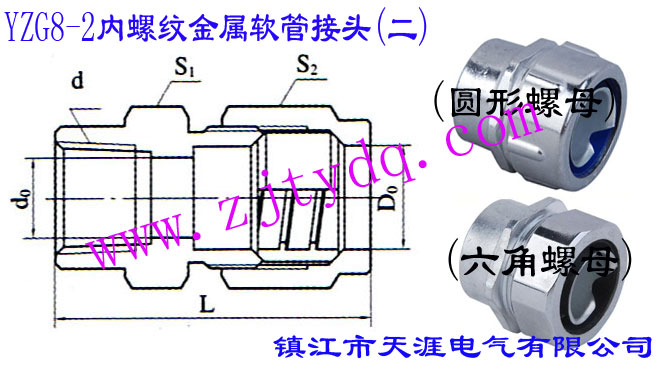

YZG8-2 內螺紋金屬軟管接頭(二) YZG8-2 Inside Thread Metal Hose Connector 2
d
D0
L
S
代號Code No
ZG1/2”
13
53
27
YZG8-2-ZG1/2”-13
ZG1/2”
17
53
27
YZG8-2-ZG1/2”-17
ZG1/2”
21
53
27
YZG8-2-ZG1/2”-21
ZG3/4”
21
57
27
YZG8-2-ZG3/4”-21
ZG1”
31
76
41
YZG8-2-ZG1/2”-31
ZG1 1/2”
46
84
58
YZG8-2-ZG1/2”-46
YZG8-2內螺紋分別為英制管螺紋ZG1/2"、ZG3/4"、ZG1"和ZG1 1/2"四種螺紋,與其相配的金屬軟管分別為DN13,DN17,DN21和DN31四種。YZG8-2內螺紋金屬軟管接頭(二)通常是和保護管相連接的。 YZG8-2 internal thread is four kinds of British pipe thread ZG1/2", ZG3/4", ZG1"and ZG1 1/2" respectively, and its matching metal hose is DN13, DN17, DN21 and DN31 respectively. YZG8-2 internal thread metal hose connector (II) is usually connected with the protective tube.
※注:YZG8-2 內螺紋金屬軟管接頭(二)Inside Thread Metal Hose Connector 2如有改進,恕不另行通知,以產品實物為準。
